Technical Parameters by Color Code
Yellow Green (Code: J/JU)
Dynamic and vivid yellow-green display for enhanced visual aesthetics and customized design applications.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.4 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 30 | | 40 | mcd |
| Spectrum Width | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 569 | | 574 | nm |
Amber/Yellow (Code: Y)
Warm, inviting amber/yellow hue for attention-grabbing displays with magnetic appeal.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.5 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 60 | | 80 | mcd |
| Spectrum Width | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 585 | | 595 | nm |
Orange (Code: F)
Vibrant orange for energetic displays that command attention with striking color presence.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.4 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 60 | | 80 | mcd |
| Spectrum Width | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 600 | | 605 | nm |
Super Bright Red (Code: R)
Captivating red with passionate intensity for displays that demand attention and leave lasting impressions.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 50 | | 60 | mcd |
| Spectrum Width | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 630 | | 635 | nm |
Ultra Bright Red (Code: UR)
Intensely luminous red delivering unmatched visibility and striking presence for maximum impact.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 80 | | 100 | mcd |
| Spectrum Width | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 625 | | 635 | nm |
Pure Green
Refreshing crisp green for eco-friendly designs with natural appeal and tranquil vitality.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 2.6 | | 3.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 120 | | 180 | mcd |
| Spectrum Width | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 515 | | 525 | nm |
Ultra Bright Blue (Code: BH)
Cool vibrant blue for modern aesthetics that introduces calm and innovation to any setting.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 2.8 | | 3.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 120 | | 140 | mcd |
| Spectrum Width | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 460 | | 465 | nm |

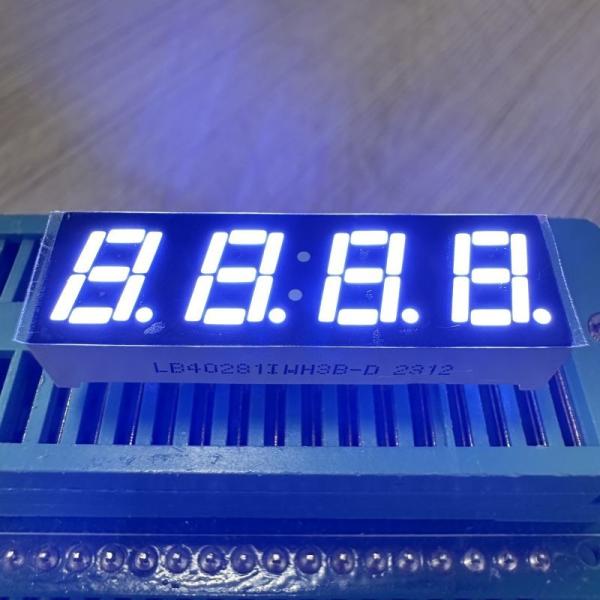

Ultra Bright White (Code: WH)
Pristine white for unmatched clarity and sophistication with pure luminous beauty and refinement.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 2.8 | | 3.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 120 | | 140 | mcd |
| LED Color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
| Chromaticity Coordinates | X/Y | If=10mA | 0.29,0.32 | | 0.30,0.33 | nm |
Frequently Asked Questions
Q1: Are you a trading company or manufacturer?
A: We are original manufacturers with more than 20 years of experience in optoelectronic LED displays.
Q2: What are your main products?
A: Our main products include 7-Segment LED displays, SMD LED displays, Dot Matrix LED displays, Arrow LED displays, Custom Design LED displays, LED light bars, Through-hole LEDs, SMD LEDs, and LED Backlights.
Q3: What is your MOQ?
A: Our MOQ is 1000 pieces. We also accept sample orders and small orders with quantities less than our MOQ.
Q4: Can I get samples for testing before placing an order?
A: Yes. We can provide 5-10 free samples for testing, but the freight cost will be borne by the customer.
Q5: How long is your delivery time?
A: Delivery time is approximately 10-20 days, depending on order quantity and raw materials. For urgent orders with available raw materials, we can adjust production to deliver within 7-10 days.
Q6: What are your payment terms?
A: We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.
Q7: Can you quote FOB prices?
A: Yes. We can quote prices based on incoterms EXW, FOB, CIF, and DDP.
Q8: How can I get your catalog and price list?
A: Please provide your email address or contact us directly through our website for our catalog and price list.
Q9: Can I negotiate prices?
A: Yes, we may consider discounts for bulk orders.
Q10: How much are the shipping charges?
A: Shipping charges depend on shipment size and shipping method. We will provide charges upon request.
Q11: Can you do custom design products?
A: Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.
Q12: If I send my design, will you keep it confidential?
A: Yes, we will not show or sell your design to others without your authorization.
Q13: What is the sample lead time for customized products?
A: Sample lead time is approximately 20-25 working days after receiving mold cost and mold drawing approval.
Q14: What shipping methods do you use?
A: We typically ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can choose the method that works best for you.
Q15: How do you ensure product quality?
A: As ISO 9001 QMS certified manufacturers with over 20 years of experience, we conduct twice 100% testing of all products before shipment.
